When standard mild steel enclosures fall short on corrosion resistance, stainless steel is the material of choice. Stainless steel electrical enclosures maintain their structural integrity and visual appearance in environments that would quickly degrade painted or coated carbon steel, including washdown areas, coastal sites, outdoor installations and locations exposed to chemical agents or aggressive cleaning procedures.
Our stainless steel enclosure fabrication draws on the same deep expertise that underpins all our stainless steel fabrication work. We understand how stainless steel behaves during cutting, folding and welding, and we apply that practical knowledge to produce enclosures with clean welds, tight tolerances and consistent finishes across every unit in a production batch.
As with all Hocklynn products, every stainless steel electrical enclosure is built to order. There are no fixed catalogue dimensions, standard configurations or minimum batch sizes. If your project requires specific cutout patterns, internal mounting arrangements, door configurations, IP ratings or non-standard dimensions, we design and fabricate to match your requirements exactly.
Our customers choose stainless steel electrical enclosures when the operating environment demands a material that will perform reliably over many years with minimal maintenance. The higher material cost of stainless steel compared to mild steel is offset by the elimination of painting and powder coating, reduced maintenance requirements, and a service life that frequently extends well beyond that of coated alternatives in corrosive conditions.
Material selection matters. The grade of stainless steel specified for your enclosure should account for the operating environment, cleaning regime, expected service life and budget considerations.
304 stainless steel is the most commonly specified grade for electrical enclosures. It provides excellent corrosion resistance in normal atmospheric conditions and indoor washdown environments. Grade 304 is widely used for control enclosures in general industrial settings, urban outdoor installations and applications where regular cleaning with standard detergents is part of the maintenance routine. It offers a strong balance of corrosion performance and cost, making it the default choice for the majority of stainless steel enclosure applications.
316 stainless steel contains added molybdenum, giving it significantly better resistance to chloride attack and pitting corrosion. This makes 316 the preferred choice for stainless steel enclosures in coastal environments, chemical processing areas, and installations where exposure to salt spray, acid vapour or aggressive cleaning solutions is a regular occurrence. Enclosures for port infrastructure, coastal monitoring systems and waterfront installations are typically specified in 316 grade to ensure long-term reliability in these challenging conditions.
We process both grades on the same equipment using dedicated stainless steel tooling and handling procedures that prevent cross-contamination from carbon steel. This attention to material segregation throughout the fabrication process is essential to maintaining the corrosion resistance properties that make stainless steel the right choice for these applications.
Both grades can be supplied with a range of surface finishes including standard mill finish, brushed, grained and dull-polish. Surface finish selection depends on the application. Visible enclosures in public or customer-facing areas often require a consistent brushed or grained finish for aesthetic reasons, while enclosures in industrial or process areas may use standard mill finish where appearance is secondary to function.
We produce stainless steel electrical enclosures across a wide range of sizes, configurations and protection ratings. Our production covers the full spectrum from small instrument enclosures to large multi-compartment control system housings.

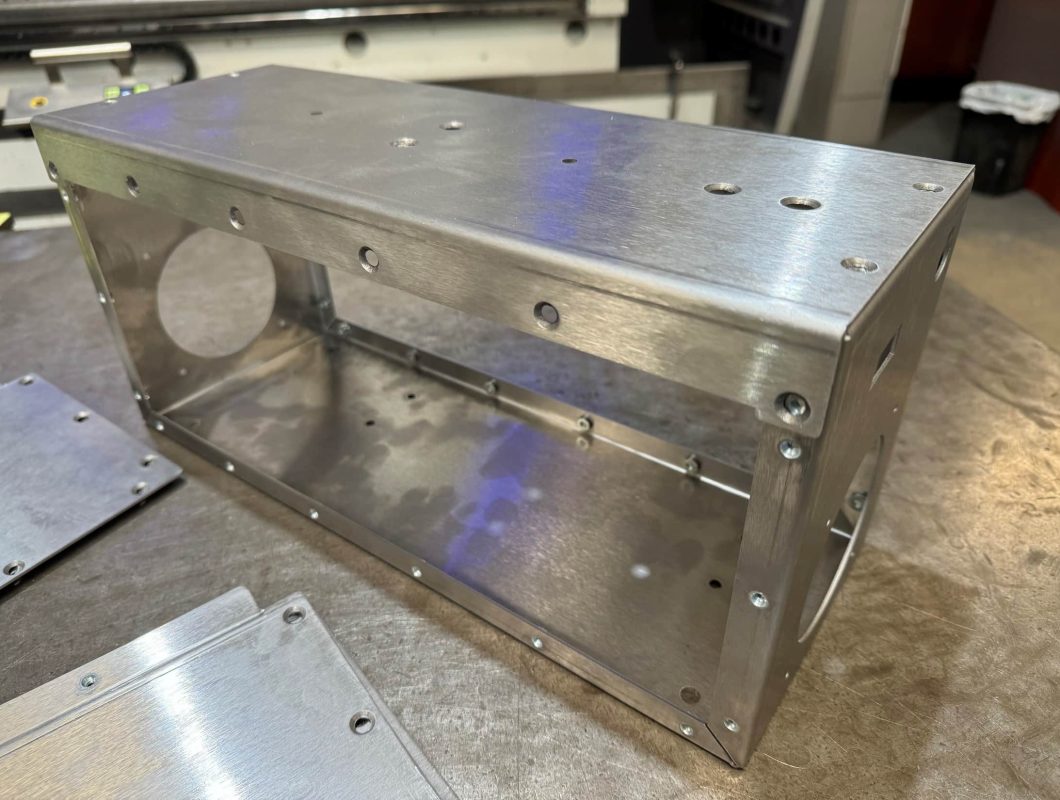

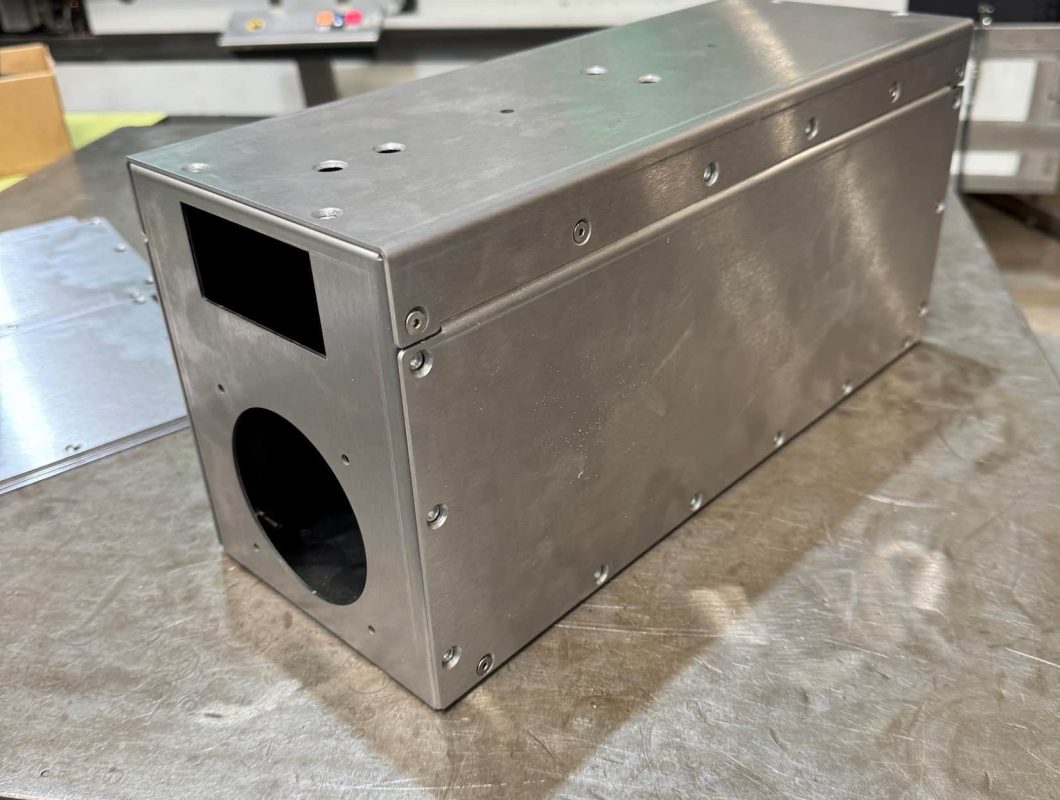

Wall mount enclosures for control systems, instrumentation, lighting control and monitoring equipment are among the most frequently requested stainless steel products. These compact enclosures are ideal for installations where space is limited but corrosion resistance is required. We fabricate wall mount enclosures with hinged doors, removable covers, integrated cable entry positions and internal mounting rails to suit your specific wiring layout and component requirements.
Floor-standing stainless steel enclosures and cabinet enclosures for power distribution, motor control and industrial automation systems represent the larger end of our stainless steel enclosure production. These enclosures can be fabricated with full-height doors, compartmentalised interiors, segregated power and control sections, and integrated ventilation or cooling provisions. Height, width and depth are specified by you, not constrained by standard product dimensions.
IP66-rated stainless steel enclosures for outdoor and washdown environments form a significant part of our production schedule. Our welded and gasketed construction achieves high IP ratings without relying on off-the-shelf sealing systems that may not suit non-standard enclosure geometries. This fabrication-led approach gives us complete flexibility on sizing and configuration while maintaining reliable environmental protection.
Control enclosures and system housings for OEM products account for a large proportion of our repeat stainless steel work. Many of these enclosures are incorporated into our customers’ own products and systems, from packaging machinery and conveyor equipment to access control systems and environmental monitoring installations. We support these customers with scheduled repeat production runs, consistent quality standards and delivery schedules aligned to their assembly programmes.
Stainless steel junction boxes, terminal enclosures and small connection housings are also part of our standard production capability. These smaller enclosures are often produced in higher quantities as part of a broader system build, and our efficient setup process keeps unit costs competitive even on modest batch sizes.
Our stainless steel electrical enclosure fabrication follows a controlled process designed to maintain material quality and surface integrity from raw sheet through to finished product.
Laser cutting on our CNC fibre laser is used for all stainless steel sheet, producing precise profiles with clean edges and minimal heat-affected zones. Cut programs are generated directly from SolidWorks CAD files, ensuring accuracy and consistency across production batches. Cut components are separated and handled carefully throughout to avoid surface contamination from contact with carbon steel tooling, fixtures or storage areas.
CNC folding is carried out on our LVD press brakes using dedicated stainless steel tooling. Bend sequences are programmed to minimise handling and reduce the risk of surface marking during forming operations. For complex enclosure geometries involving multiple bends and tight tolerances, our engineers verify the forming sequence in CAD before committing to production, ensuring the finished enclosure assembles squarely and meets dimensional requirements.
MIG and TIG Welding is performed by experienced fabricators using TIG welding for visible joints and areas requiring the highest finish quality, and MIG welding for internal structural joints where strength rather than appearance is the priority. All welds on stainless steel enclosures are passivated using our electrolytic weld cleaning process, which restores the chromium oxide layer and produces a clean, corrosion-resistant finish without the need for acid pastes or chemical treatments.
Finishing options include brushed, grained and dull-polish surfaces applied by our hand finishing team. The specific finish is agreed during design review and applied consistently across all components in a production batch. Where enclosures require accessories such as hinges, locks, gaskets, cable glands or internal mounting hardware, these are fitted during the assembly phase to deliver a complete product ready for your equipment installation.
Stainless steel electrical enclosures serve a broad range of industrial and commercial applications. The combination of corrosion resistance, structural strength and clean visual appearance makes stainless steel the material of choice in areas where enclosures are visible to customers, subject to regular cleaning, or exposed to corrosive atmospheres.
Industrial control systems and automation equipment in environments prone to moisture, chemical exposure or temperature extremes frequently specify stainless steel enclosures. Packaging machinery, conveyor systems, process control installations and industrial washdown areas all benefit from the long-term reliability that stainless steel construction provides in these demanding conditions.

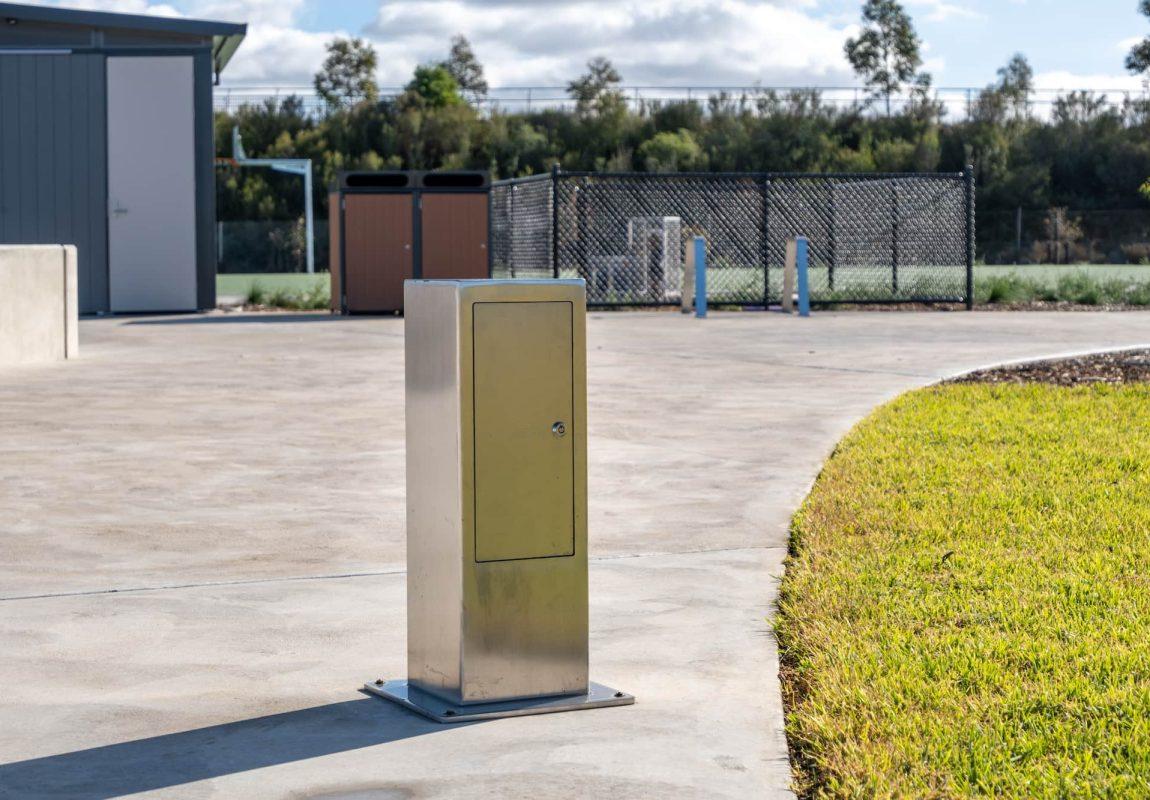

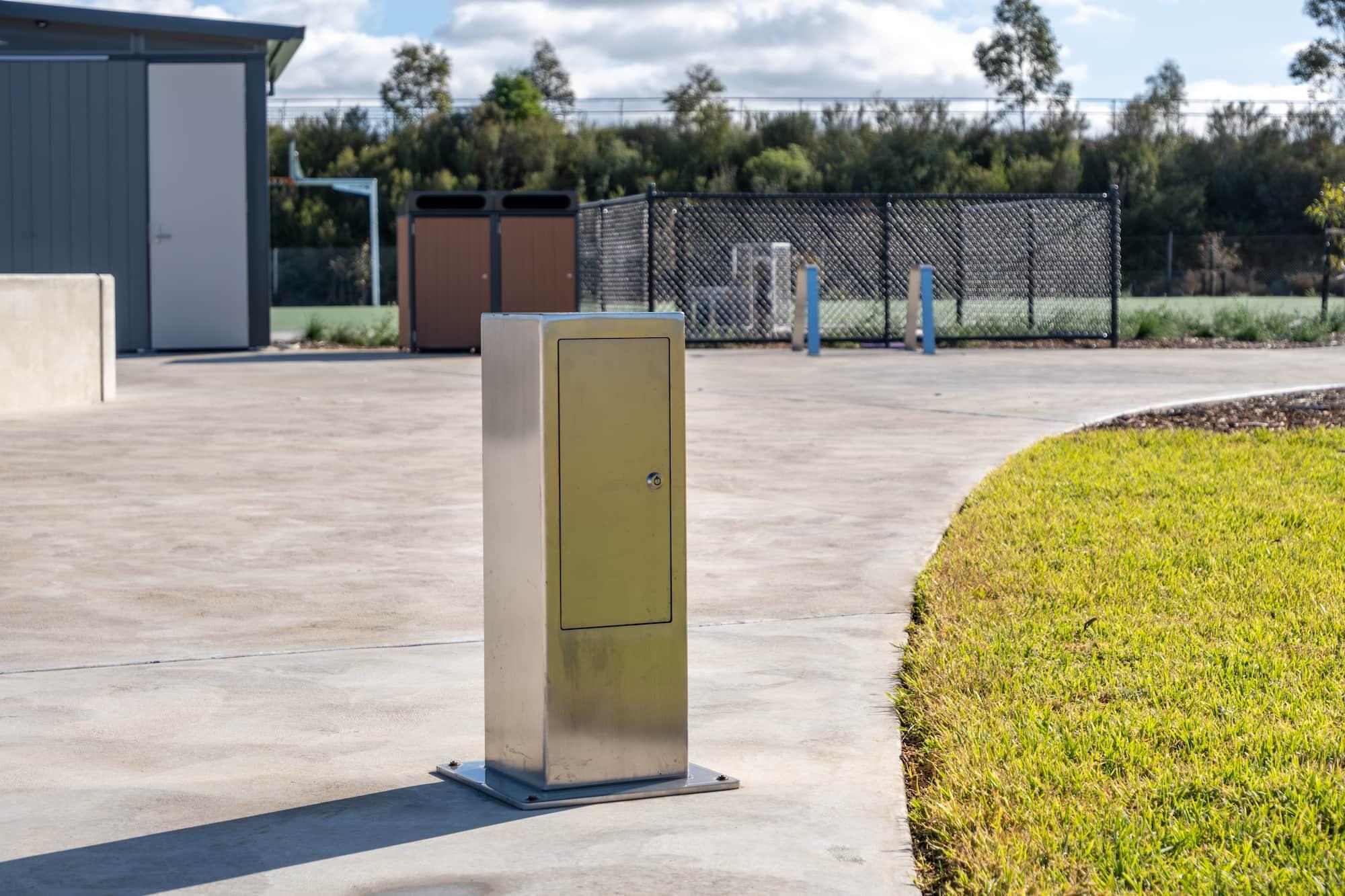

Outdoor and coastal electrical enclosures account for a significant proportion of our stainless steel enclosure production. Port infrastructure, coastal monitoring equipment, waterfront developments and exposed industrial sites all require enclosures that resist salt spray and atmospheric corrosion without surface degradation over extended service periods.
Security and access control systems operating in exposed environments use stainless steel enclosures for both their corrosion resistance and vandal-resistant properties. The inherent strength of stainless steel combined with quality welded construction produces enclosures that resist forced entry, providing an additional layer of physical security for sensitive equipment in public-facing locations.
We do not position our stainless steel fabrication for food-grade, pharmaceutical or medical manufacturing applications. Our focus is on industrial and commercial electrical enclosures where durability, corrosion resistance and long service life are the primary performance requirements.
Where stainless steel is not required, we also manufacture custom electrical enclosures in mild steel and aluminium to suit a wide range of operating environments and budgets.
Grade 304 provides excellent general-purpose corrosion resistance and is the most cost-effective stainless option for most indoor and sheltered outdoor applications. Grade 316 contains molybdenum which gives it superior resistance to chlorides and pitting corrosion, making it the better choice for coastal, marine and chemical environments where 304 may not provide adequate long-term protection.
Yes. Our hand finishing team applies consistent brushed, grained or polished finishes across complete production batches. Surface finish is agreed during design review and controlled throughout the fabrication process to ensure visual and tactile uniformity across every enclosure in the batch.
Our stainless steel enclosures are typically fabricated to IP65 or IP66, providing full dust protection and resistance to water jets and heavy rainfall. Higher ratings including IP67 can be achieved with appropriate gasket selection, sealing methods and construction techniques. We advise on the correct specification based on your installation environment and the sensitivity of the equipment being housed.
Yes. We regularly produce stainless steel enclosures in short runs of 5 to 20 units, as well as individual prototypes and longer scheduled production batches. Our setup process is designed to make short runs efficient and cost-effective, with part files stored for fast recall on repeat orders.
Stainless steel is a more expensive raw material than mild steel, and fabrication requires dedicated tooling and careful handling procedures to maintain surface quality. However, stainless steel enclosures typically require no painting or powder coating, and their significantly longer service life in corrosive environments can make them the more economical choice over the full lifecycle of an installation. We can quote both options so you can make a direct comparison based on your application and budget.
